VRUT11

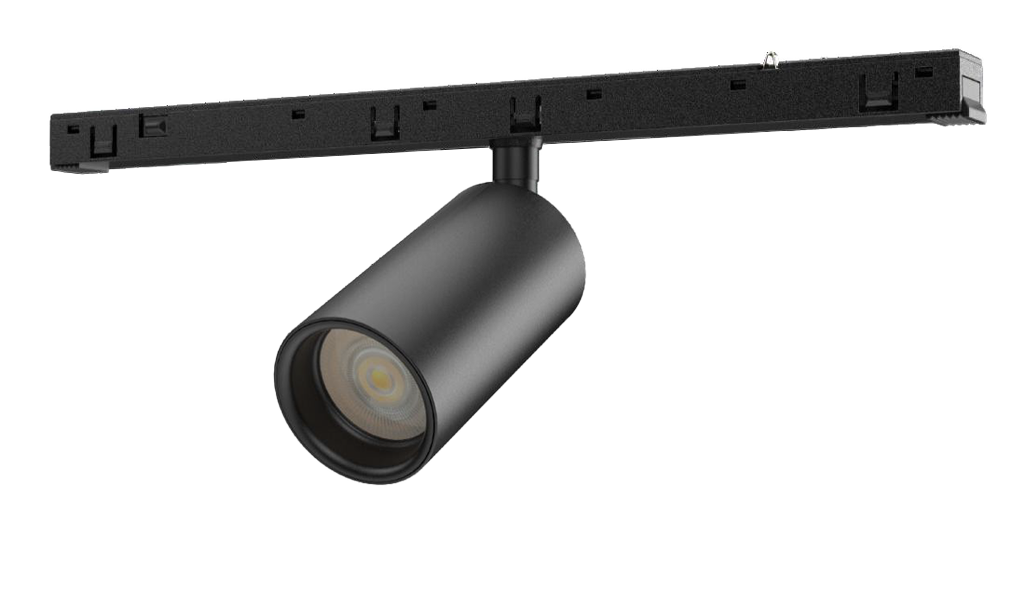

11mm Ultra-Thin Magnetic Spot light
A compact, ultra-thin 11mm magnetic spotlight featuring precise directional aiming and effortless snap-in mounting, engineered to deliver targeted accent illumination and flexible light control for modern architectural spaces.
Technical Specifications
| CODE | VRUT11S5W | VRUT11S8W | VRUT11S12W |
|---|---|---|---|
| Dimension(mm) | Φ30.5*57 | Φ40.5*57 | Φ50.5*57 |
| System power (W) | 5W | 8W | 12W |
| Input Voltage(V) | DC 48V | DC 48V | DC 48V |
| Light Source | Osram | Osram | Osram |
| SDCM | <5 | <5 | <5 |
| CCT(K) | 3000K/4000K standard. Different CCT upon request. | 3000K/4000K standard. Different CCT upon request. | 3000K/4000K standard. Different CCT upon request. |
| Luminous (lm) ±5% | 85lm/w | 85lm/w | 85lm/w |
| CRI | Ra≥85 | Ra≥85 | Ra≥85 |
| Beam Angle (°) | 24° | 24° | 24° |
| LED Driver | External | External | External |
| Dimming Option | On-off / 1-10v / DAL / Triac | On-off / 1-10v / DAL / Triac | On-off / 1-10v / DAL / Triac |
| IP Rating | IP20 | IP20 | IP20 |
| Product Colour | White ,Silver, Black | White ,Silver, Black | White ,Silver, Black |
| Materials | Aluminum 6063-T5, | Aluminum 6063-T5, | Aluminum 6063-T5, |
| Lifetime (hr) | 50,000h | 50,000h | 50,000h |
| Operating Temp. | -20°C~+45°C | -20°C~+45°C | -20°C~+45°C |
Ordering Options
| VRUT11S5W | CCT | COLOR |
|---|---|---|
| VRUT11S5WC3WH | 3000K | White |
| VRUT11S5WC4WH | 4000K | White |
| VRUT11S5WC3BL | 3000K | Black |
| VRUT11S5WC4BL | 4000K | Black |
| VRUT11S5WC3SI | 3000K | Silver |
| VRUT11S5WC4SI | 4000K | Silver |
| VRUT11S8W | CCT | COLOR |
|---|---|---|
| VRUT11S8WC3WH | 3000K | White |
| VRUT11S8WC4WH | 4000K | White |
| VRUT11S8WC3BL | 3000K | Black |
| VRUT11S8WC4BL | 4000K | Black |
| VRUT11S8WC3SI | 3000K | Silver |
| VRUT11S8WC4SI | 4000K | Silver |
| VRUT11S12W | CCT | BEAM |
|---|---|---|
| VRUT11S12WC3WH | 3000K | White |
| VRUT11S12WC4WH | 4000K | White |
| VRUT11S12WC3BL | 3000K | Black |
| VRUT11S12WC4BL | 4000K | Black |
| VRUT11S12WC3SI | 3000K | Silver |
| VRUT11S12WC4SI | 4000K | Silver |
