VRXMT
Magnetic Track X Series

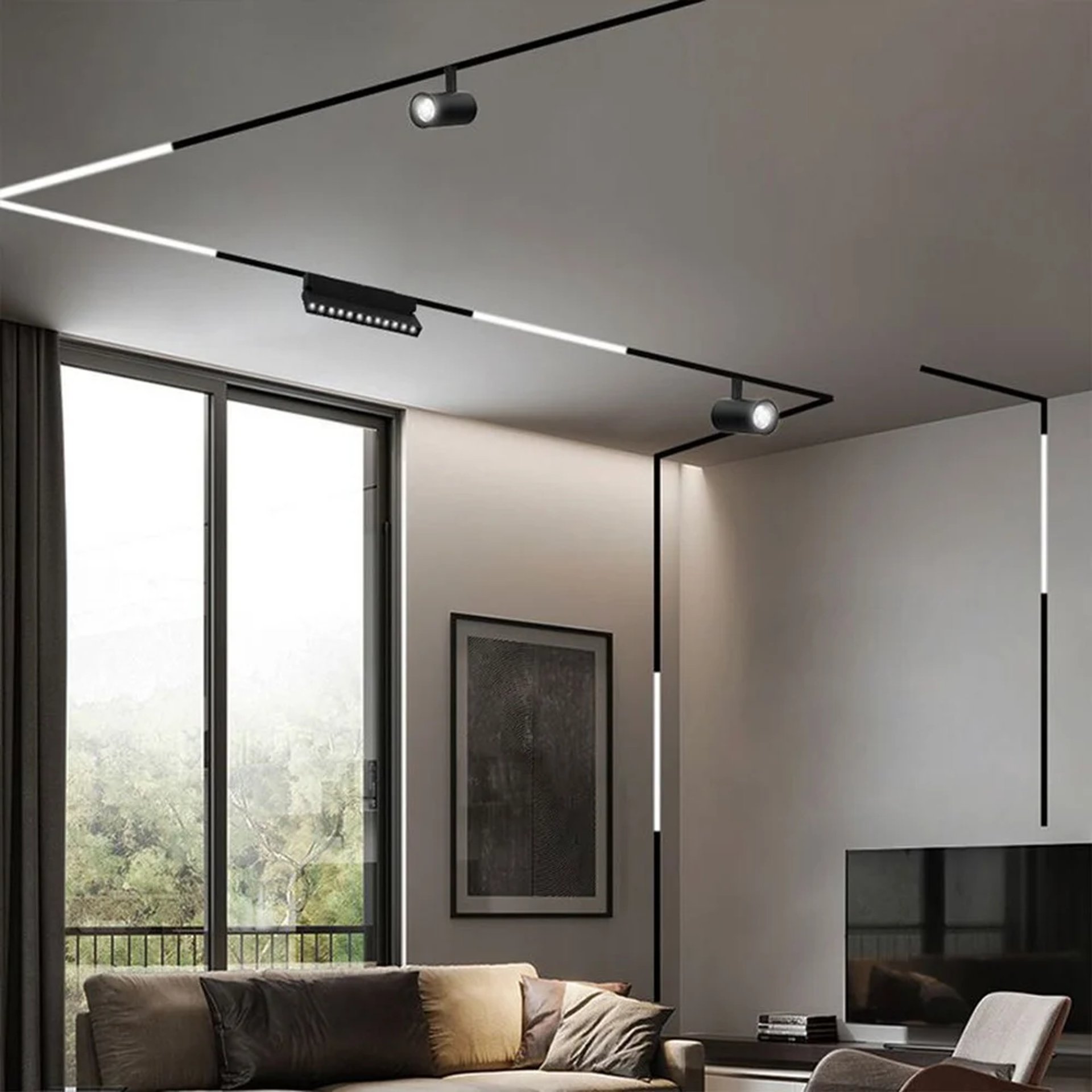

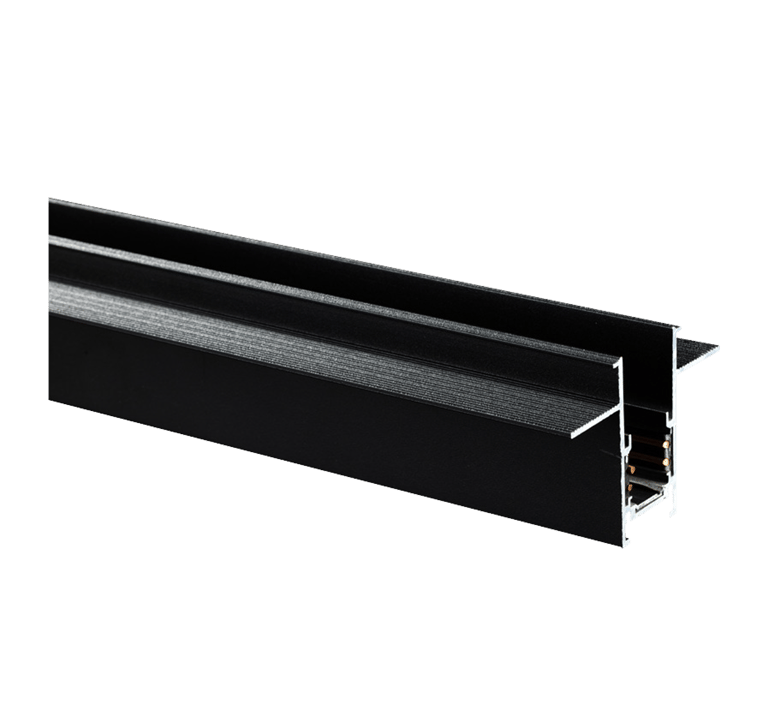

Engineered from high-grade extruded aluminum, this magnetic track system provides a versatile low-voltage foundation for flexible, seamless integration into modern architectural interiors.
Technical Specifications
| CODE | Surface VRXMTS | Recessed VRXMTR |
|---|---|---|
| Dimension(mm) | 26.2X52.2x(1000/2000/3000)mm | 68X52.2x(1000/200/03000)mm |
| Installation | Surface Mounted | Recessed Mounted |
| Cutout | 2000x26mm | 2000x26mm |
| Input Voltage(V) | DC 24V/48V | DC 24V/48V |
| Lenght | 1000mm, 2000mm,3000mm | 1000mm, 2000mm,3000mm |
| Track Color | White , Black | White , Black |
| IP Rating | IP20 | IP20 |
| Materials | Aluminum | Aluminum |
Ordering Options

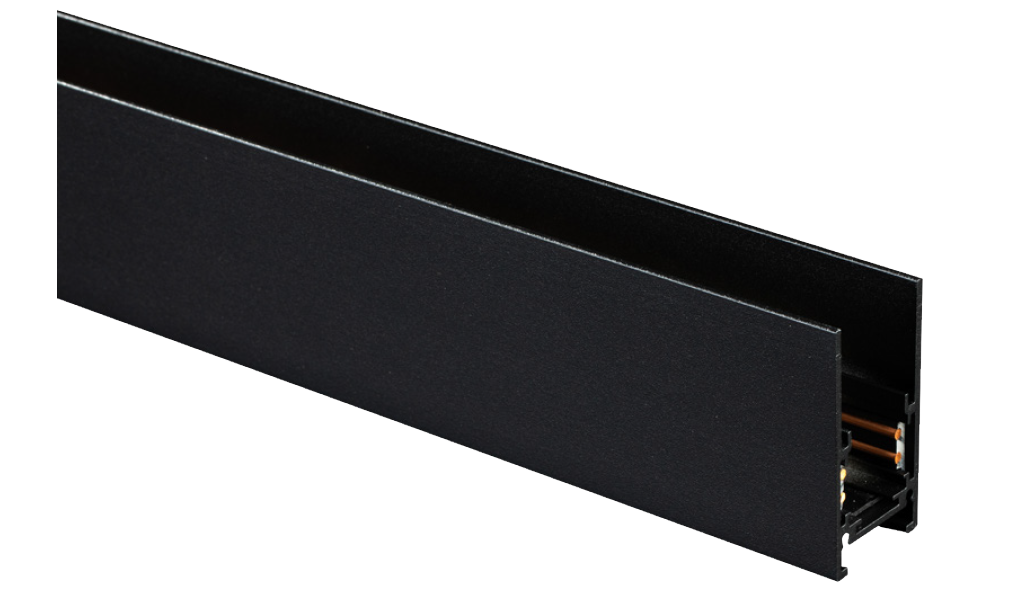

Surface Mounted
| VRXMTS1 1000mm | VRXMTS2 2000mm | VRXMTS3 3000mm | Color |
|---|---|---|---|
| VRXMTS1WH | VRXMTS2WH | VRXMTS3WH | White |
| VRXMTS1BL | VRXMTS2BL | VRXMTS3BL | Black |

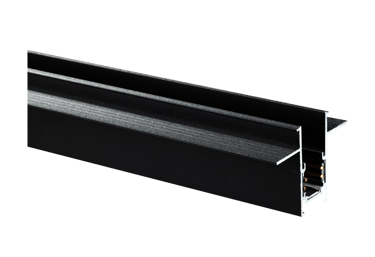

Trimless Mounted
| VRXMTR1 1000mm | VRXMTR2 2000mm | VRXMTR3 3000mm | Color |
|---|---|---|---|
| VRXMTR1WH | VRXMTR2WH | VRXMTR3WH | White |
| VRXMTR1BL | VRXMTR2BL | VRXMTR3BL | Black |
