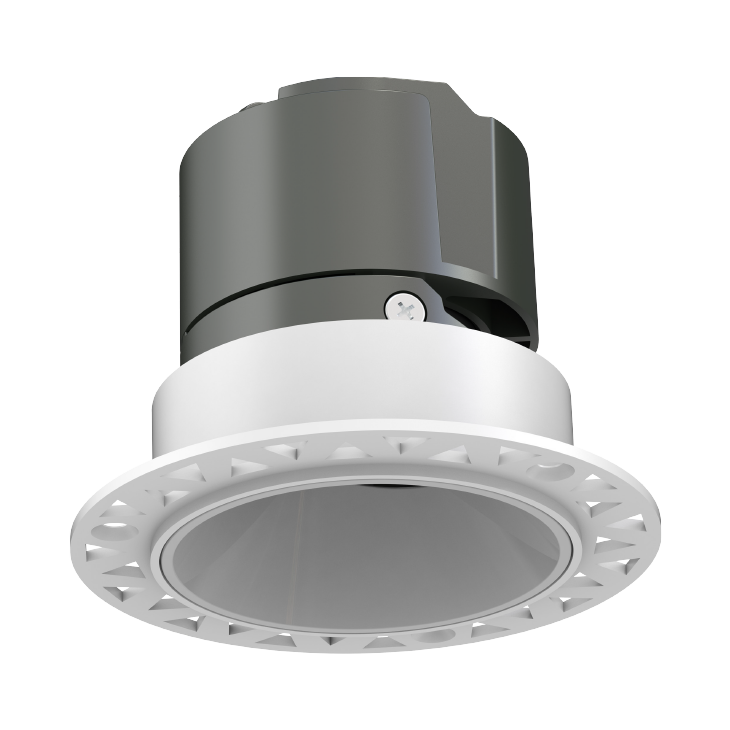

Matt White Baffle

Fixed

Trimless Downlight

VR390

Fixed Trimless Downlight

Minimalist architectural LED downlight featuring a seamless, mud-in flangeless frame that integrates invisibly into the drywall for an ultra-clean, flush ceiling aesthetic with high-performance illumination.

Technical Specifications

CODE VR390S5W VR390S8W VR390M10W VR390M18W VR390L18W VR390L24W
Dimension Φ74x70mm Φ74x70mm Φ99x80mm Φ99x80mm Φ114x100mm Φ114x100mm
Cutout Φ55mm Φ55mm Φ75mm Φ75mm Φ95mm Φ95mm
power 5W 8W 10W 18W 18W 24.5W
Voltage 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz
Light Source Osram COB Osram COB Osram COB Osram COB Osram COB Osram COB
SDCM <5 <5 <5 <5 <5 <5
CCT(K) 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K
Luminous 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W
CRI Ra>80 Ra>80 Ra>80 Ra>80 Ra>80 Ra>80
Beam Angle 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55°
LED Driver External LED driver External LED driver External LED driver External LED driver External LED driver External LED driver
Dimming On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
UGR <19 <19 <19 <19 <19 <19
IP Rating IP20 IP20 IP20 IP20 IP20 IP20
Baffle Colour Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h
Oper. Temp. -20°~50° -20°~50° -20°~50° -20°~50° -20°~50° -20°~50°

Ordering Options

VR390S5W CCT BEAM
VR390S5WC3B8 3000K 8°
VR390S5WC4B8 4000K 8°
VR390S5WC3B15 3000K 15°
VR390S5WC4B15 4000K 15°
VR390S5WC3B24 3000K 24°
VR390S5WC4B24 4000K 24°
VR390S5WC3B38 3000K 38°
VR390S5WC4B38 4000K 38°
VR390S5WC3B55 3000K 55°
VR390S5WC4B55 4000K 55°
VR390S8W CCT BEAM
VR390S8WC3B8 3000K 8°
VR390S8WC4B8 4000K 8°
VR390S8WC3B15 3000K 15°
VR390S8WC4B15 4000K 15°
VR390S8WC3B24 3000K 24°
VR390S8WC4B24 4000K 24°
VR390S8WC3B38 3000K 38°
VR390S8WC4B38 4000K 38°
VR390S8WC3B55 3000K 55°
VR390S8WC4B55 4000K 55°
VR390M10W CCT BEAM
VR390M10WC3B8 3000K 8°
VR390M10WC4B8 4000K 8°
VR390M10WC3B15 3000K 15°
VR390M10WC4B15 4000K 15°
VR390M10WC3B24 3000K 24°
VR390M10WC4B24 4000K 24°
VR390M10WC3B38 3000K 38°
VR390M10WC4B38 4000K 38°
VR390M10WC3B55 3000K 55°
VR390M10WC4B55 4000K 55°
VR390M18W CCT BEAM
VR390M18WC3B8 3000K 8°
VR390M18WC4B8 4000K 8°
VR390M18WC3B15 3000K 15°
VR390M18WC4B15 4000K 15°
VR390M18WC3B24 3000K 24°
VR390M18WC4B24 4000K 24°
VR390M18WC3B38 3000K 38°
VR390M18WC4B38 4000K 38°
VR390M18WC3B55 3000K 55°
VR390M18WC4B55 4000K 55°
VR390L18W CCT BEAM
VR390L18WC3B8 3000K 8°
VR390L18WC4B8 4000K 8°
VR390L18WC3B15 3000K 15°
VR390L18WC4B15 4000K 15°
VR390L18WC3B24 3000K 24°
VR390L18WC4B24 4000K 24°
VR390L18WC3B38 3000K 38°
VR390L18WC4B38 4000K 38°
VR390L18WC3B55 3000K 55°
VR390L18WC4B55 4000K 55°
VR390L24W CCT BEAM
VR390L24WC3B8 3000K 8°
VR390L24WC4B8 4000K 8°
VR390L24WC3B15 3000K 15°
VR390L24WC4B15 4000K 15°
VR390L24WC3B24 3000K 24°
VR390L24WC4B24 4000K 24°
VR390L24WC3B38 3000K 38°
VR390L24WC4B38 4000K 38°
VR390L24WC3B55 3000K 55°
VR390L24WC4B55 4000K 55°
