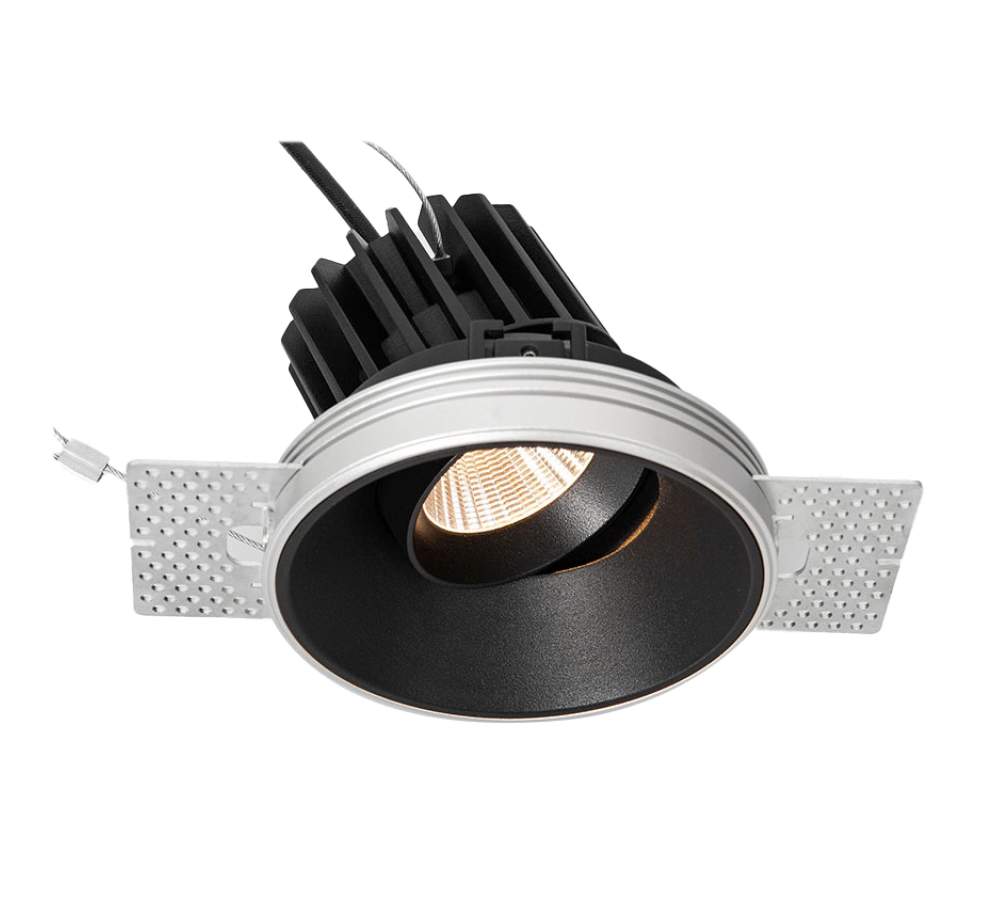

VRAD
Tiltable Trimless Downlight
Advanced architectural LED downlight featuring a flangeless trimless frame for a seamless ceiling integration, combined with a flexible tilt mechanism for precision accent lighting and directional beam control.
Technical Specifications
| CODE | VRADR | VRADS |
|---|---|---|
| Dimension(mm) | Ø92x81 | 92.5x92.5x81 |
| Cutout (mm) | Ø92 | 92.5x92.5 |
| System power (W) | 10W | 10W |
| Input Voltage(V) | 220-240VAC 50/60Hz | 220-240VAC 50/60Hz |
| Light Source | Citizen | Citizen |
| SDCM | <5 | <5 |
| CCT(K) | 3000K/4000K standard. Different CCT upon request. | 3000K/4000K standard. Different CCT upon request. |
| Luminous (lm) ±5% | 884-947 lm | 884-947 lm |
| CRI | Ra>80 | Ra>80 |
| Beam Angle (°) | 15°/ 24°/38°/60° | 15°/ 24°/38°/60° |
| LED Driver | External LED drivers: constant-current | External LED drivers: constant-current |
| Dimming Option | On-off / 1-10v / Triac / Dali | On-off / 1-10v / Triac / Dali |
| UGR | <19 | <19 |
| IP Rating | IP54 | IP54 |
| Product Colour | Black | Black |
| Front Ring Colour | Black / White | Black / White |
| Materials | Aluminum Die-casting | Aluminum Die-casting |
| Lifetime (hr) | 50,000h | 50,000h |
| Operating Temp. | -20°~45° | -20°~45° |
Ordering Options
| VRADR | CCT | BEAM |
|---|---|---|
| VRADRC3B15 | 3000K | 15° |
| VRADRC4B15 | 4000K | 15° |
| VRADRC3B24 | 3000K | 24° |
| VRADRC4B24 | 4000K | 24° |
| VRADRC3B38 | 3000K | 38° |
| VRADRC4B38 | 4000K | 38° |
| VRADRC3B60 | 3000K | 60° |
| VRADRC4B60 | 4000K | 60° |
| VRADS | CCT | BEAM |
|---|---|---|
| VRADSC3B15 | 3000K | 15° |
| VRADSC4B15 | 4000K | 15° |
| VRADSC3B24 | 3000K | 24° |
| VRADSC4B24 | 4000K | 24° |
| VRADSC3B38 | 3000K | 38° |
| VRADSC4B38 | 4000K | 38° |
| VRADSC3B60 | 3000K | 60° |
| VRADSC4B60 | 4000K | 60° |
