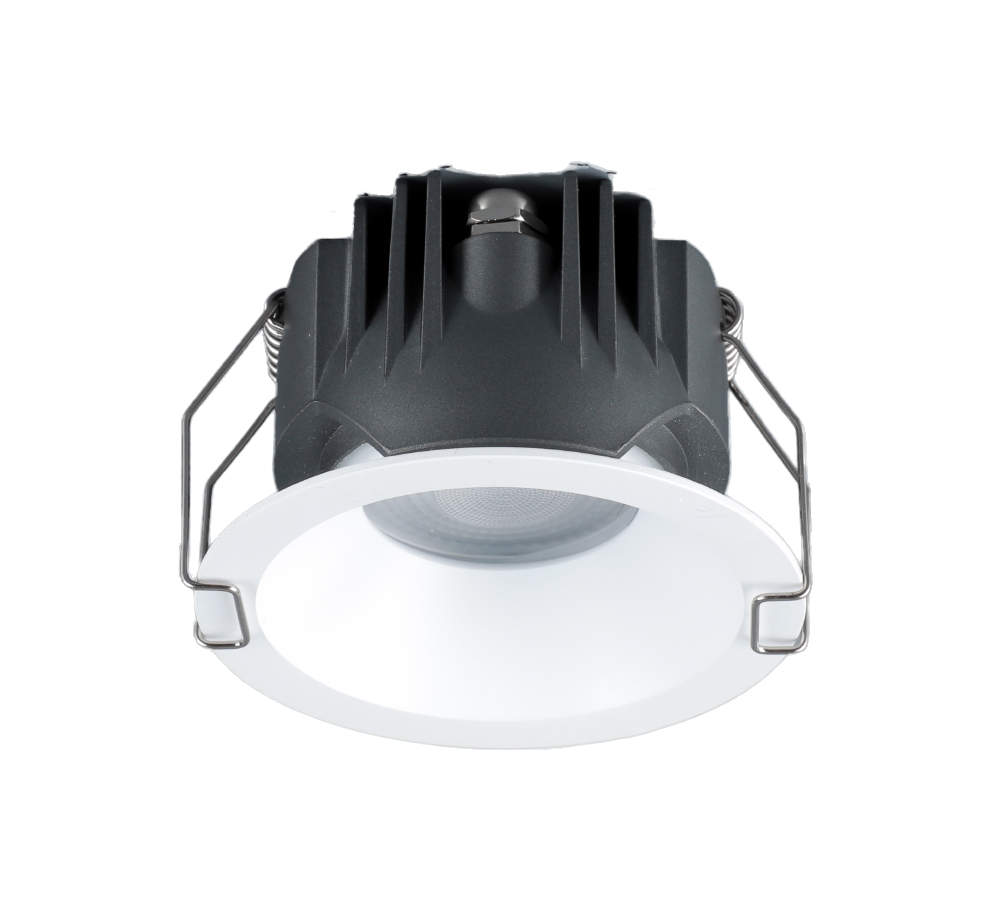

VRF65D Matt White Baffle

IP65 Fixed

Recessed Downlight

VRF65D

IP65 Fixed Recessed Downlight

Weather-resistant architectural LED downlight featuring an IP65 moisture-protected rating, engineered for reliable performance and safe, glare-free illumination in bathrooms, wet areas.

Technical Specifications

CODE VRF65D7W VRF65D12W VRF65D20W VRF65D25W
Dimension(mm) Φ65x52mm Φ85x56mm Φ105x68mm Φ135x80mm
Cutout (mm) Φ55mm Φ75mm Φ95mm Φ115mm
System power (W) 7W 12W 20W 25W
Input Voltage(V) DC 36V DC 36V DC 36V DC 36V
Light Source Osram COB Osram COB Osram COB Osram COB
SDCM <5 <5 <5 <5
CCT(K) 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request.
Luminous (lm) ±5% 140 lm/W 140 lm/W 140 lm/W 140 lm/W
CRI Ra>80 Ra>80 Ra>80 Ra>80
Beam Angle (°) 24°/36°/55° 24°/36°/55° 24°/36°/55° 24°/36°/55°
LED Driver External LED drivers External LED drivers External LED drivers External LED drivers
Dimming Option On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
UGR <19 <19 <19 <19
IP Rating IP65 IP65 IP65 IP65
Front Ring Colour Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h
Operating Temp. -20°~45° -20°~45° -20°~45° -20°~45°

Ordering Options

VRF65D7W CCT BEAM
VRF65D7WC3B24 3000K 24°
VRF65D7WC4B24 4000K 24°
VRF65D7WC3B36 3000K 36°
VRF65D7WC4B36 4000K 36°
VRF65D7WC3B55 3000K 55°
VRF65D7WC4B55 4000K 55°
VRF65D12W CCT BEAM
VRF65D12WC3B24 3000K 24°
VRF65D12WC4B24 4000K 24°
VRF65D12WC3B36 3000K 36°
VRF65D12WC4B36 4000K 36°
VRF65D12WC3B55 3000K 55°
VRF65D12WC4B55 4000K 55°
VRF65D20W CCT BEAM
VRF65D20WC3B24 3000K 24°
VRF65D20WC4B24 4000K 24°
VRF65D20WC3B36 3000K 36°
VRF65D20WC4B36 4000K 36°
VRF65D20WC3B55 3000K 55°
VRF65D20WC4B55 4000K 55°
VRF65D25W CCT BEAM
VRF65D25WC3B24 3000K 24°
VRF65D25WC4B24 4000K 24°
VRF65D25WC3B36 3000K 36°
VRF65D25WC4B36 4000K 36°
VRF65D25WC3B55 3000K 55°
VRF65D25WC4B55 4000K 55°
