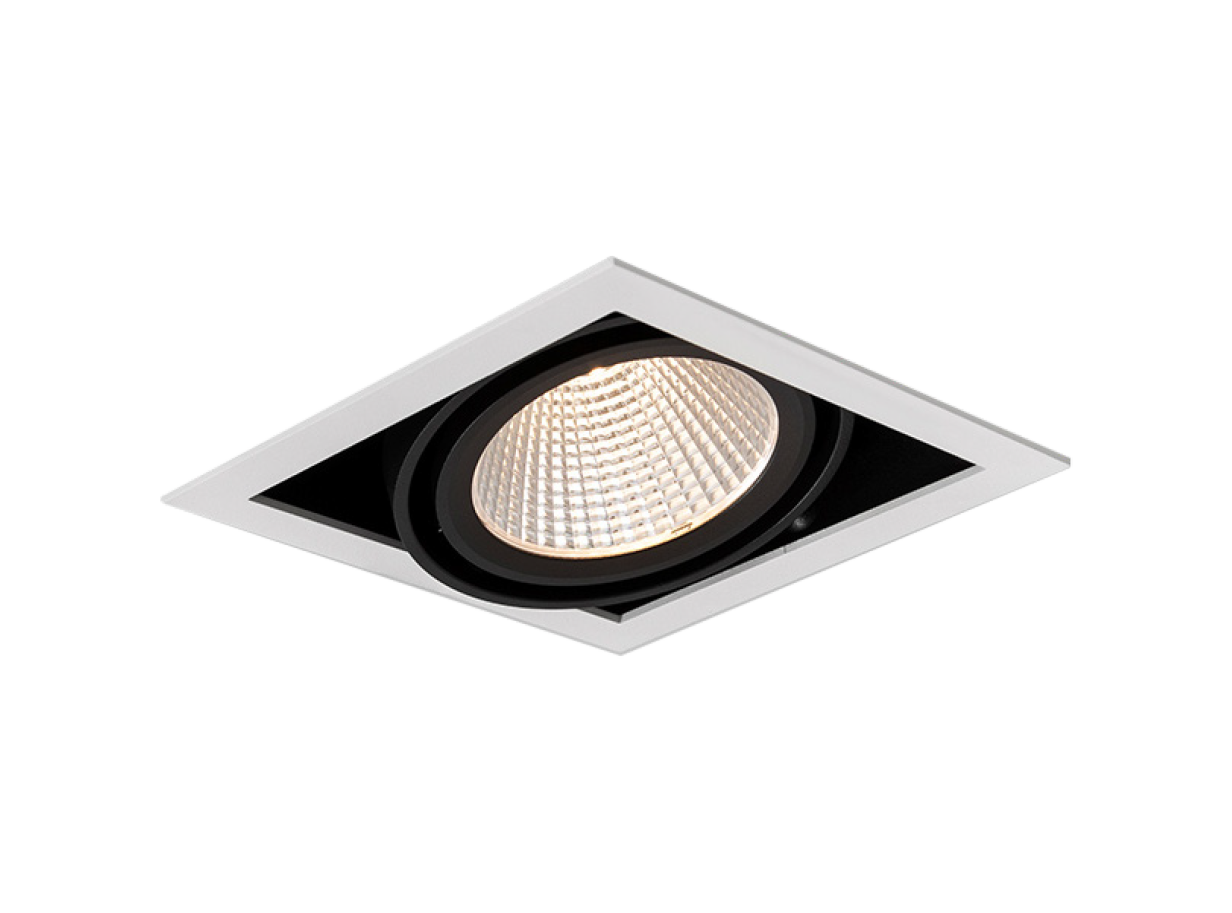

VRLC130

Tiltable

Recessed Downlight

VRLC

Tiltable Recessed Downlight

Adjustable architectural LED downlight featuring flexible tilt angles for directional accent lighting, precise beam control, and high-efficiency illumination tailored for modern spaces.

Technical Specifications

CODE VRLC130 VRLC250 VRLC367
Dimension(mm) 131x131x72 250x131x72 367x131x72
Cutout (mm) 110x110 230x110 345x110
System power (W) 15W 2x15W 3x15W
Input Voltage(V) DC 36V DC 36V DC 36V
Light Source Bridgelux Bridgelux Bridgelux
SDCM <5 <5 <5
CCT(K) 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request.
Luminous (lm) ±5% 1100Im 2200Im 3100Im
CRI Ra>80 Ra>80 Ra>80
Beam Angle (°) 15°/ 24°/36° 15°/ 24°/36° 15°/ 24°/36°
LED Driver External LED drivers External LED drivers External LED drivers
Dimming Option On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
UGR <19 <19 <19
IP Rating IP20 IP20 IP20
Product Colour Black Black Black
Front Ring Colour Black / White Black / White Black / White
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h
Operating Temp. -20°~45° -20°~45° -20°~45°

Ordering Options

VRLC130 CCT BEAM
VRLC130C3B15 3000K 15°
VRLC130C4B15 4000K 15°
VRLC130C3B24 3000K 24°
VRLC130C4B24 4000K 24°
VRLC130C3B36 3000K 36°
VRLC130C4B36 4000K 36°
VRLC250 CCT BEAM
VRLC250C3B15 3000K 15°
VRLC250C4B15 4000K 15°
VRLC250C3B24 3000K 24°
VRLC250C4B24 4000K 24°
VRLC250C3B36 3000K 36°
VRLC250C4B36 4000K 36°
VRLC367 CCT BEAM
VRLC367C3B15 3000K 15°
VRLC367C4B15 4000K 15°
VRLC367C3B24 3000K 24°
VRLC367C4B24 4000K 24°
VRLC367C3B36 3000K 36°
VRLC367C4B36 4000K 36°
