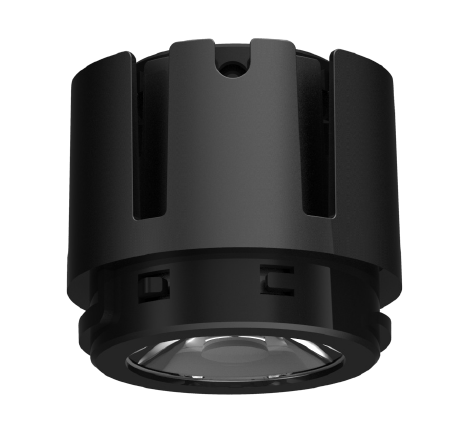

VRM6W

Modular Downlight

VRM

Modular Downlight

Versatile modular architectural lighting system featuring an interchangeable engine and frame design, allowing you to easily pair high-performance light modules with multiple configurable trims for ultimate design flexibility.

Technical Specifications

CODE VRM6W VRM9W VRM15W
Dimension(mm) Ø55x49 Ø55x49 Ø55x72
System power (W) 6W 9W 15W
Input Voltage(V) AC 220-240V 50/60hz AC 220-240V 50/60hz AC 220-240V 50/60hz
Light Source Bridgelux Bridgelux Bridgelux
SDCM <3 <3 <3
CCT(K) 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request.
Luminous (lm) ±5% 550lm 900lm 1500lm
CRI Ra>90 Ra>90 Ra>90
Beam Angle (°) 15°/ 24°/38°/ 55° 15°/ 24°/38°/ 55° 15°/ 24°/38°/ 55°
LED Driver External LED drivers External LED drivers External LED drivers
Dimming Option On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
IP Rating IP44 IP44 IP44
Product Colour Black Black Black
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h
Operating Temp. -20°~40° -20°~40° -20°~40°

Ordering Options

VRM6W CCT BEAM
VRM6WC3B15 3000K 15°
VRM6WC4B15 4000K 15°
VRM6WC3B24 3000K 24°
VRM6WC4B24 4000K 24°
VRM6WC3B38 3000K 38°
VRM6WC4B38 4000K 38°
VRM6WC3B55 3000K 55°
VRM6WC4B55 4000K 55°
VRM9W CCT BEAM
VRM9WC3B15 3000K 15°
VRM9WC4B15 4000K 15°
VRM9WC3B24 3000K 24°
VRM9WC4B24 4000K 24°
VRM9WC3B38 3000K 38°
VRM9WC4B38 4000K 38°
VRM9WC3B55 3000K 55°
VRM9WC4B55 4000K 55°
VRM15W CCT BEAM
VRM15WC3B15 3000K 15°
VRM15WC4B15 4000K 15°
VRM15WC3B24 3000K 24°
VRM15WC4B24 4000K 24°
VRM15WC3B38 3000K 38°
VRM15WC4B38 4000K 38°
VRM15WC3B55 3000K 55°
VRM15WC4B55 4000K 55°

Trim Options

VRT1SRS Recessed /Adjustable 25°
Dimension 85x85x52mm
Cutout 75x75mm
Color White / Black
VRT2SRS Recessed /Adjustable 25°
Dimension 154.5x85x51mm
Cutout 140x75mm
Color White / Black
VRT3SRS Recessed /Adjustable 25°
Dimension 280x100x67mm
Cutout 270x90mm
Color White / Black
VRT1RRS Trimless/Adjustable 25°
Dimension 120x120x67mm
Cutout 90x90mm
Color White / Black
VRT2RRS Trimless/Adjustable 25°
Dimension 210x120x67mm
Cutout 180x90mm
Color White / Black
VRT3RRS Trimless/Adjustable 25°
Dimension 300x120x67mm
Cutout 270x90mm
Color White / Black
VRT1UG Recessed / Anti Glare
Dimension Ø90x37mm
Cutout Ø80mm
Color White / Black
VRT1UGS Recessed / Anti Glare
Dimension 90x90x37mm
Cutout 80x80mm
Color White / Black
VRT2UGS Recessed / Anti Glare
Dimension 175x90x37mm
Cutout 165x80mm
Color White / Black
VRT1R Recessed / Adjustable 25°
Dimension Ø85x52mm
Cutout Ø75mm
Color White / Black
VRT1F Recessed / Fixed
Dimension Ø85x52mm
Cutout Ø75mm
Color White / Black
VRT1RR Trimless/Adjustable 25°
Dimension Ø85x52mm
Cutout Ø75mm
Color White / Black
VRT1RF Trimless/Fixed
Dimension Ø85x52
Cutout Ø75W
Color White / Black
VRT71RIP54 Recessed / Shower light
Dimension Ø88x48mm
Cutout Ø75mm
Color White / Black
VRT71SIP54 Recessed / Shower light
Dimension 88x88x48mm
Cutout 75x75mm
Color White / Black
VRT79RIP54 Recessed / Shower light
Dimension Ø105x48mm
Cutout Ø90mm
Color White / Black
VRT1SRS Recessed / Fixed
Dimension Ø68x27mm
Cutout Ø60mm
Color White / Black
VRT12R Recessed / Fixed
Dimension Ø85x30mm
Cutout Ø75mm
Color White / Black
VRT34R Recessed /Deep/Fixed
Dimension Ø85x53mm
Cutout Ø75mm
Color White / Black
VRT1087R Recessed /Deep/Fixed
Dimension Ø88x40mm
Cutout Ø75W
Color White / Black
VRT1088S Recessed /Deep/Fixed
Dimension 88x88x39mm
Cutout 75x75W
Color White / Black
VRT1089R Recessed /Deep/Fixed
Dimension Ø88x47mm
Cutout Ø75mm
Color White / Black
VRT1090R Recessed /Deep /Fixed
Dimension Ø88x48
Cutout Ø75W
Color White / Black
VRT1091S Recessed /Deep/Fixed
Dimension 88x88x47
Cutout 75x75W
Color White / Black
