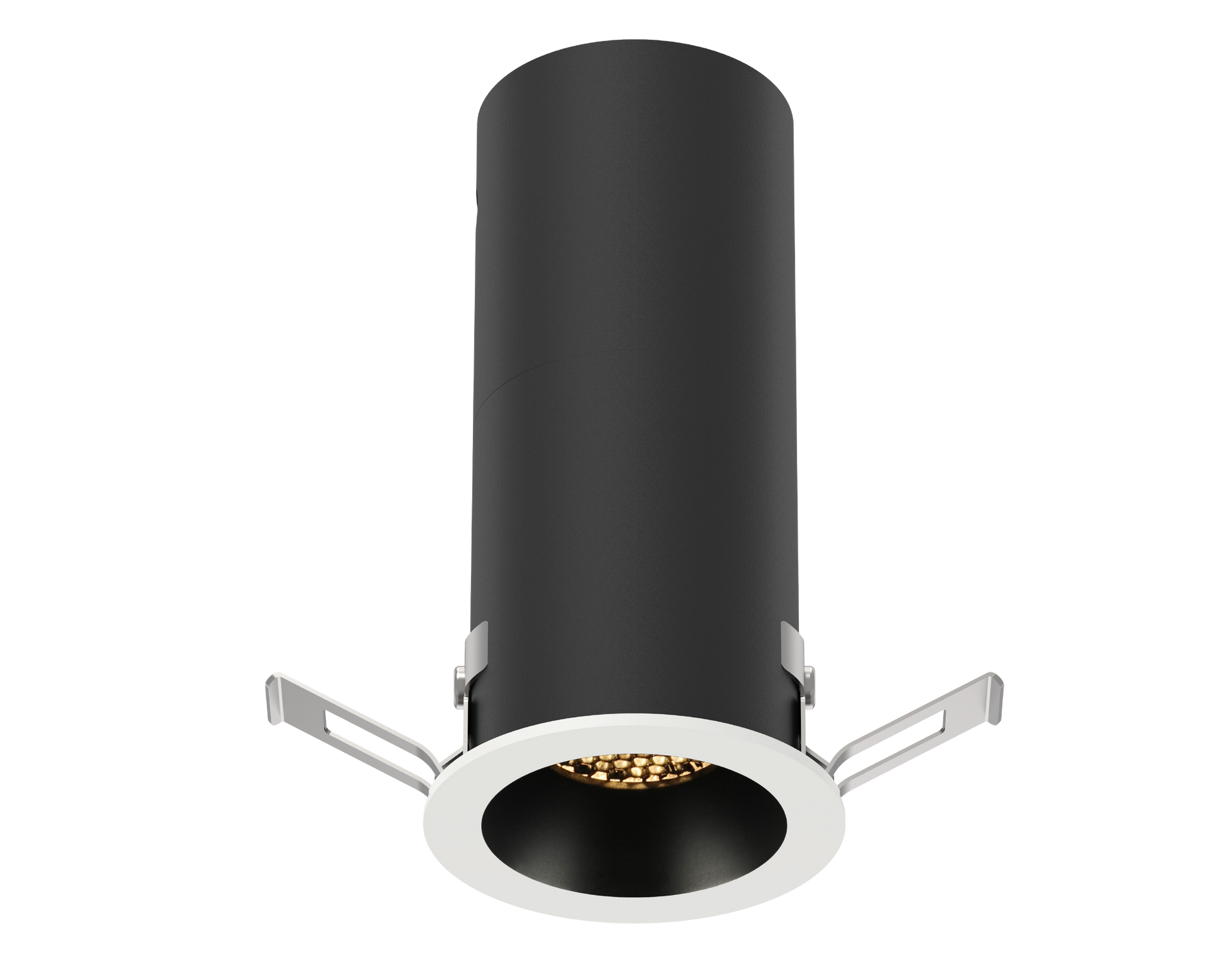

VRMB6W

Mini

Recessed Downlight

VRMB

Mini Recessed Downlight

Compact yet powerful mini recessed LED downlight engineered for discreet architectural integration, delivering high-efficiency illumination, precise beam control, and seamless low-profile aesthetics for modern interiors

Technical Specifications

CODE VRMB6W VRMB8W VRMB10W
Dimension(mm) Ø40*H75 Ø53*H80 Ø53*H80
Cutout (mm) Ø35 Ø50 Ø50
System power (W) 6W 8W 10W
Input Voltage(V) DC 12V DC 32V DC 32V
Light Source CREE CITIZEN CITIZEN
SDCM <5 <5 <5
CCT(K) 3000K/4000K 3000K/4000K 3000K/4000K
Luminous (lm) ±5% 268-317 lm 325-350 lm 514-556 lm
CRI Ra>80 Ra>80 Ra>80
Beam Angle (°) 15°/ 24°/36° 15°/ 24°/36° 15°/ 24°/36°
LED Driver External LED drivers: constant-current External LED drivers: constant-current External LED drivers: constant-current
Dimming Option On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
UGR <19 <19 <19
IP Rating IP20 IP20 IP20
Product Colour Black Black Black
Front Ring Colour Black / White Black / White Black / White
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h
Operating Temp. -20°~45° -20°~45° -20°~45°

Ordering Options

VRMB6W CCT BEAM
VRMB6WC3B15 3000K 15°
VRMB6WC4B15 4000K 15°
VRMB6WC3B24 3000K 24°
VRMB6WC4B24 4000K 24°
VRMB6WC3B36 3000K 36°
VRMB6WC4B36 4000K 36°
VRMB8W CCT BEAM
VRMB8WC3B15 3000K 15°
VRMB8WC4B15 4000K 15°
VRMB8WC3B24 3000K 24°
VRMB8WC4B24 4000K 24°
VRMB8WC3B36 3000K 36°
VRMB8WC4B36 4000K 36°
VRMB10W CCT BEAM
VRMB10WC3B15 3000K 15°
VRMB10WC4B15 4000K 15°
VRMB10WC3B24 3000K 24°
VRMB10WC4B24 4000K 24°
VRMB10WC3B36 3000K 36°
VRMB10WC4B36 4000K 36°
