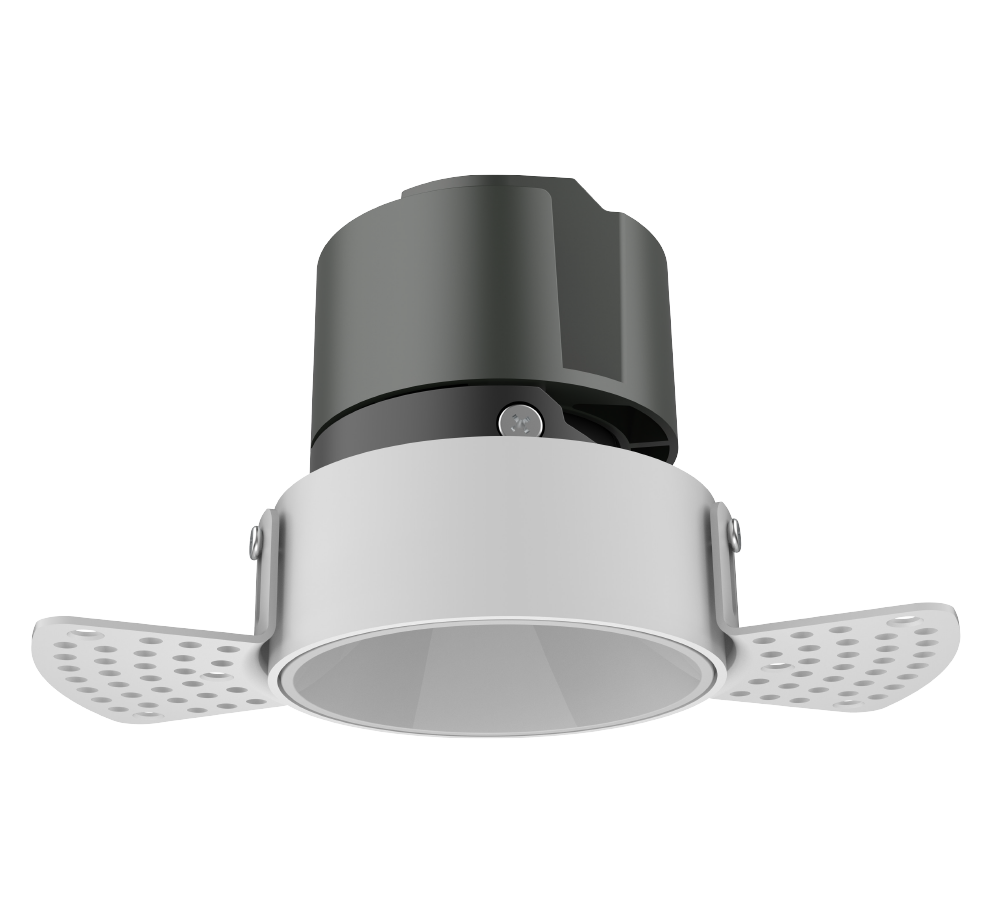

Matt White Baffle

Tiltable

Trimless Downlight

VR390

Fixed Trimless Downlight

Minimalist architectural LED downlight featuring a seamless, mud-in flangeless frame that integrates invisibly into the drywall for an ultra-clean, flush ceiling aesthetic with high-performance illumination.

Technical Specifications

CODE VRT390S5W VRT390S8W VRT390M10W VRT390M18W VRT390L18W VRT390L24W
Dimension(mm) Φ110x70mm Φ110x70mm Φ145x80mm Φ145x80mm Φ172X100mm Φ172X100mm
Cutout (mm) Φ65mm Φ65mm Φ85mm Φ85mm Φ105mm Φ105mm
Power 5W 8W 10W 18W 18W 24.5W
Input Voltage(V) 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz
Light Source Osram COB Osram COB Osram COB Osram COB Osram COB Osram COB
SDCM <5 <5 <5 <5 <5 <5
CCT(K) 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K 3000K/4000K
Luminous 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W 140 lm/W
CRI Ra>80 Ra>80 Ra>80 Ra>80 Ra>80 Ra>80
Beam Angle (°) 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55° 8°/15°/24°/38°/55°
LED Driver External External External LED driver External LED driver External LED driver External LED driver
Dimming Option On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali On-off / 1-10v / Triac / Dali
UGR <19 <19 <19 <19 <19 <19
IP Rating IP20 IP20 IP20 IP20 IP20 IP20
Product Colour Black Black Black Black Black Black
Baffle Colour Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver Matt Black / Matt White / Silver
Materials Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h 50,000h 50,000h
Operating Temp. -20°~50° -20°~50° -20°~50° -20°~50° -20°~50° -20°~50°

Ordering Options

VRT390S5W CCT BEAM
VRT390S5WC3B8 3000K 8°
VRT390S5WC4B8 4000K 8°
VRT390S5WC3B15 3000K 15°
VRT390S5WC4B15 4000K 15°
VRT390S5WC3B24 3000K 24°
VRT390S5WC4B24 4000K 24°
VRT390S5WC3B38 3000K 38°
VRT390S5WC4B38 4000K 38°
VRT390S5WC3B55 3000K 55°
VRT390S5WC4B55 4000K 55°
VRT390S8W CCT BEAM
VRT390S8WC3B8 3000K 8°
VRT390S8WC4B8 4000K 8°
VRT390S8WC3B15 3000K 15°
VRT390S8WC4B15 4000K 15°
VRT390S8WC3B24 3000K 24°
VRT390S8WC4B24 4000K 24°
VRT390S8WC3B38 3000K 38°
VRT390S8WC4B38 4000K 38°
VRT390S8WC3B55 3000K 55°
VRT390S8WC4B55 4000K 55°
VRT390M10W CCT BEAM
VRT390M10WC3B8 3000K 8°
VRT390M10WC4B8 4000K 8°
VRT390M10WC3B15 3000K 15°
VRT390M10WC4B15 4000K 15°
VRT390M10WC3B24 3000K 24°
VRT390M10WC4B24 4000K 24°
VRT390M10WC3B38 3000K 38°
VRT390M10WC4B38 4000K 38°
VRT390M10WC3B55 3000K 55°
VRT390M10WC4B55 4000K 55°
VRT390M18W CCT BEAM
VRT390M18WC3B8 3000K 8°
VRT390M18WC4B8 4000K 8°
VRT390M18WC3B15 3000K 15°
VRT390M18WC4B15 4000K 15°
VRT390M18WC3B24 3000K 24°
VRT390M18WC4B24 4000K 24°
VRT390M18WC3B38 3000K 38°
VRT390M18WC4B38 4000K 38°
VRT390M18WC3B55 3000K 55°
VRT390M18WC4B55 4000K 55°
VRT390L18W CCT BEAM
VRT390L18WC3B8 3000K 8°
VRT390L18WC4B8 4000K 8°
VRT390L18WC3B15 3000K 15°
VRT390L18WC4B15 4000K 15°
VRT390L18WC3B24 3000K 24°
VRT390L18WC4B24 4000K 24°
VRT390L18WC3B38 3000K 38°
VRT390L18WC4B38 4000K 38°
VRT390L18WC3B55 3000K 55°
VRT390L18WC4B55 4000K 55°
VRT390L24W CCT BEAM
VRT390L24WC3B8 3000K 8°
VRT390L24WC4B8 4000K 8°
VRT390L24WC3B15 3000K 15°
VRT390L24WC4B15 4000K 15°
VRT390L24WC3B24 3000K 24°
VRT390L24WC4B24 4000K 24°
VRT390L24WC3B38 3000K 38°
VRT390L24WC4B38 4000K 38°
VRT390L24WC3B55 3000K 55°
VRT390L24WC4B55 4000K 55°
