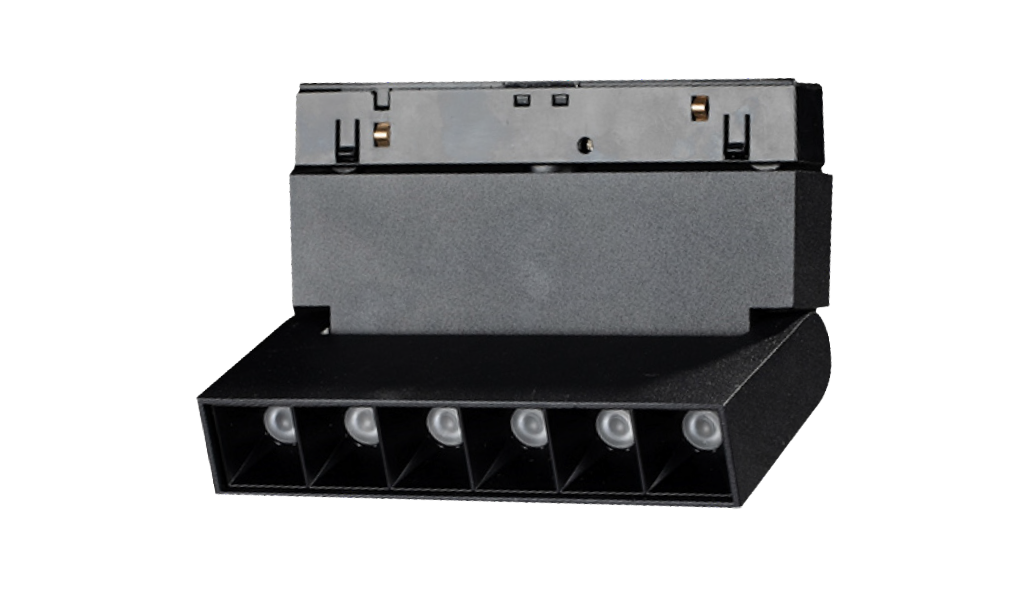

VRXMTG06 Adjustable

X Series Grille Light

Grille Light

Magnetic Track X Series

A sleek magnetic track module engineered with deep-set anti-glare louvers and precision optics, delivering focused, comfortable illumination with effortless snap-in magnetic installation.

Technical Specifications

CODE VRXMTG06 Adjustable VRXMTG12 Adjustable VRXMTDG06 Fixed VRXMTDG12 Fixed
Dimension(mm) 120x22x85mm 231x22xH85mm 120x22x45mm 220x20x45mm
System power (W) 6W 12W 6W 12W
Input Voltage(V) DC 24V/48V DC 24V/48V DC 24V/48V DC 24V/48V
Light Source Osram Osram Osram Osram
SDCM <5 <5 <5 <5
CCT(K) 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request. 3000K/4000K standard. Different CCT upon request.
Luminous (lm) ±5% 85lm/w 85lm/w 85lm/w 85lm/w
CRI Ra≥85 Ra≥85 Ra≥85 Ra≥85
Beam Angle (°) 24° 24° 24° 24°
LED Driver External External External External
Dimming Option On-off / 1-10v / DAL / Triac On-off / 1-10v / DAL / Triac On-off / 1-10v / DAL / Triac On-off / 1-10v / DAL / Triac
IP Rating IP20 IP20 IP20 IP20
Product Colour White , Black White , Black White , Black White , Black
Materials Aluminum 6063-T5, Aluminum 6063-T5, Aluminum 6063-T5, Aluminum 6063-T5,
Lifetime (hr) 50,000h 50,000h 50,000h 50,000h
Operating Temp. -20°C~+45°C -20°C~+45°C -20°C~+45°C -20°C~+45°C

Ordering Options

VRXMTG06 Adjustable Grille

VRXMTG06 CCT COLOR
VRXMTG06C3WH 3000K White
VRXMTG06C4WH 4000K White
VRXMTG06C3BL 3000K Black
VRXMTG06C4BL 4000K Black

VRXMTG12 Adjustable Grille

VRXMTG12 CCT COLOR
VRXMTG12C3WH 3000K White
VRXMTG12C4WH 4000K White
VRXMTG12C3BL 3000K Black
VRXMTG12C4BL 4000K Black

VRXMTDG06 Fixed Grille

VRXMTDG06 CCT BEAM
VRXMTDG06C3WH 3000K White
VRXMTDG06C4WH 4000K White
VRXMTDG06C3BL 3000K Black
VRXMTDG06C4BL 4000K Black

VRXMTDG12 Fixed Grille

VRXMTDG12 CCT BEAM
VRXMTDG12C3WH 3000K White
VRXMTDG12C4WH 4000K White
VRXMTDG12C3BL 3000K Black
VRXMTDG12C4BL 4000K Black
